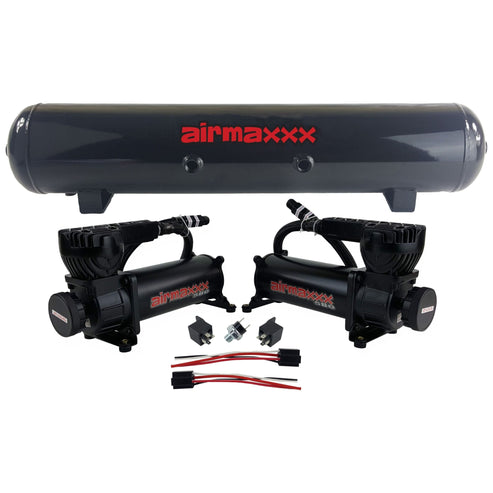

airmaxxx 580 Black Dual Compressors & 5 Gallon Steel Tank

Heavy-Duty Power, Cooler Performance

The airmaxxx 580 Black Dual Compressor Pack with 5 Gallon Steel Tank delivers serious airflow, reliable pressure, and cooler running performance. Each 580 runs up to 40° cooler than the 480 model, while producing up to 200 PSI with a 100% duty cycle at 100 PSI.

Matched with a gloss black powder-coated steel tank rated for 200 PSI, this system provides both strength and capacity to handle demanding air ride suspension systems, air horns, or onboard pneumatic needs. Add the optional dual compressor wiring kit for an even easier installation.

Key Features

Dual 580 Black Compressors – 3.6 CFM combined airflow

200 PSI Max Pressure – Handles suspension, horns, and onboard air

100% Duty @ 100 PSI – Built for continuous use under load

Runs Cooler – Redesigned head dissipates heat 40° better than 480s

5 Gallon Steel Tank – Strong, durable, gloss black finish

Complete Kit – Includes leader hoses, check valves, relays, and pressure switch

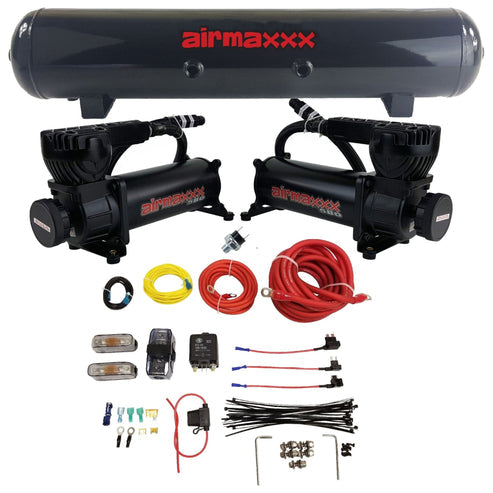

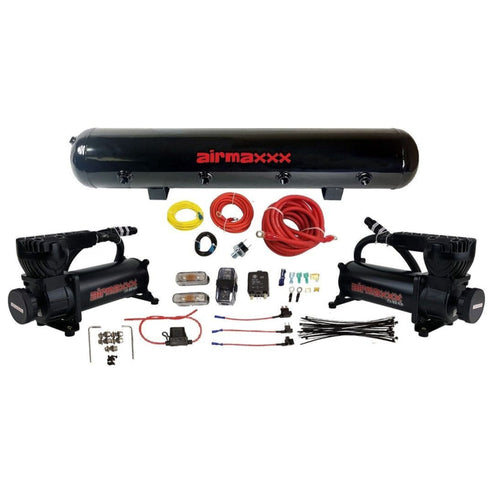

Expandable – Optional dual compressor wire kit available

Kit Includes

(2) airmaxxx 580 black compressors
(COM580B2)

(1) 5 gallon steel tank
(AM-TAN-57-STEEL) (AM-TAN-59-STEEL)

(2) 3/8" stainless braided leader hoses

(2) 3/8"NPT check valves

(2) 40 amp heavy duty relays

(1) heavy duty pressure switch
(optional)

Specs

Each Compressor

12V, 1.86 CFM
(dual pack: 3.60 CFM)

Permanent magnetic motor

Duty cycle: 100% @ 100 PSI

Max pressure: 200 PSI

Max draw: 24 amps

Size: 9.5" L x 7" H x 3.25" W

1-year manufacturer warranty

Tank

Capacity: 5 gallon steel

Rated to 200 PSI

Ports: multiple NPT sizes
(1/2", 3/8", 1/4")

Size: 33" L x 7" W x 8.25" H

Gloss black powder coat finish
