airmaxxx Black X-Series Air Ride Compressor

High-Performance Power for Air Ride Systems

The airmaxxx Black X-Series Air Compressor is engineered for demanding suspension setups where speed, strength, and reliability matter most. Delivering 2.2 CFM output with a 100% duty cycle at 200 PSI, this compressor is built to handle continuous use without overheating or downtime.

Its extruded aluminum body dissipates heat efficiently, while the built-in cooling fan and thermal overload protection keep it running strong under load. With sleek hidden wiring, quiet isolator feet, and durable stainless fittings, the X-Series blends power with clean installation.

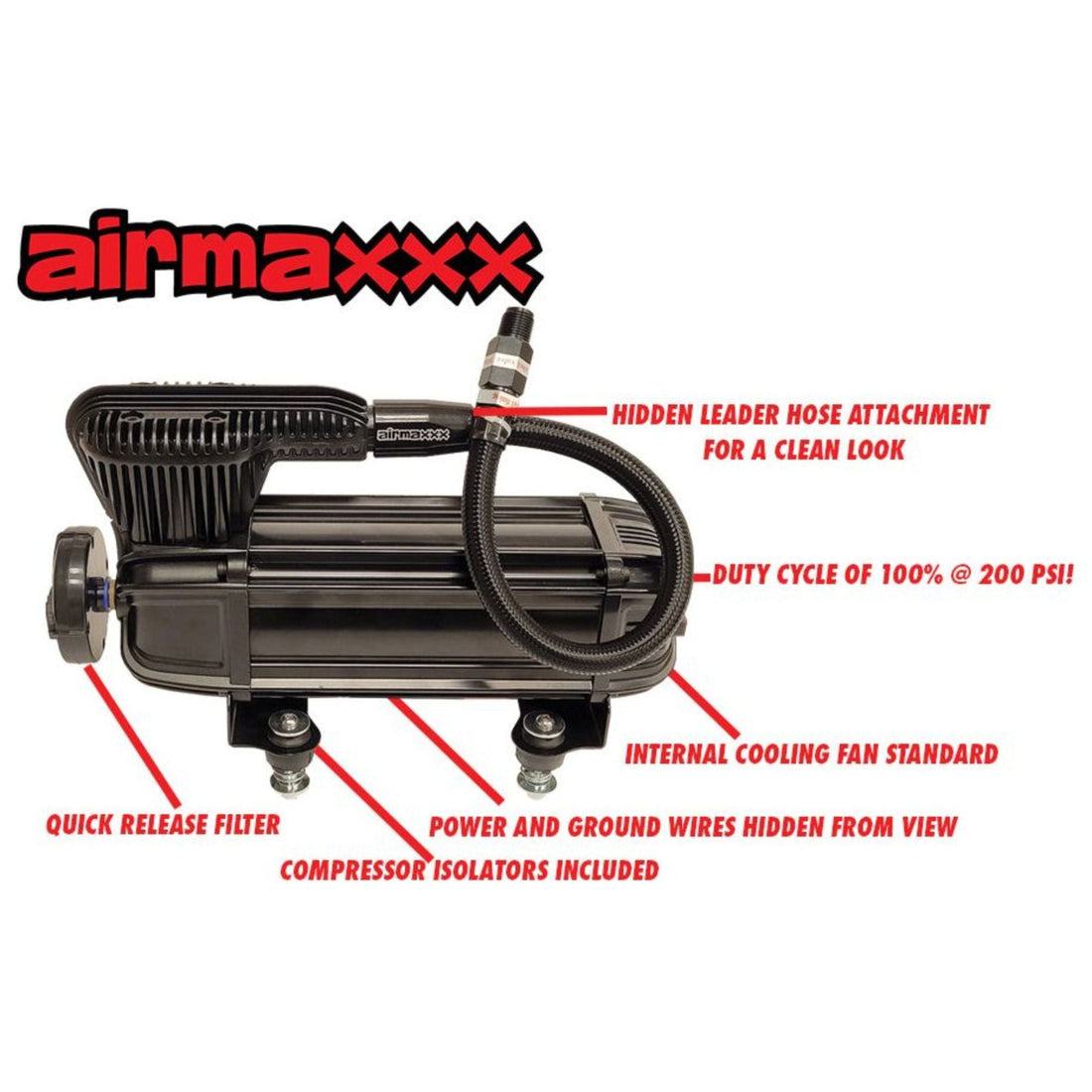

Key Features

100% Duty Cycle @ 200 PSI – Run continuously without downtime.

2.2 CFM Output – Fast tank fills and quick system response.

Extruded Aluminum Body – Improves heat dissipation and durability.

Internal Cooling Fan – Prevents overheating during heavy use.

Quiet Isolator Mounts – Reduces vibration and compressor noise.

Stainless Steel Leader Hose – 3/8" NPT with pre-installed check valve.

Clean Wiring – Hidden factory power and ground leads for professional installs.

Push-to-Connect Air Filter – Optional remote mount capability for dusty environments.

Specifications

Max Working Pressure: 200 PSI

Duty Cycle: 100% @ 200 PSI

CFM: 2.2 CFM

Max Tank Size: 5.0 gallons

Max Amp Draw: 35 amps

Voltage: 12V DC

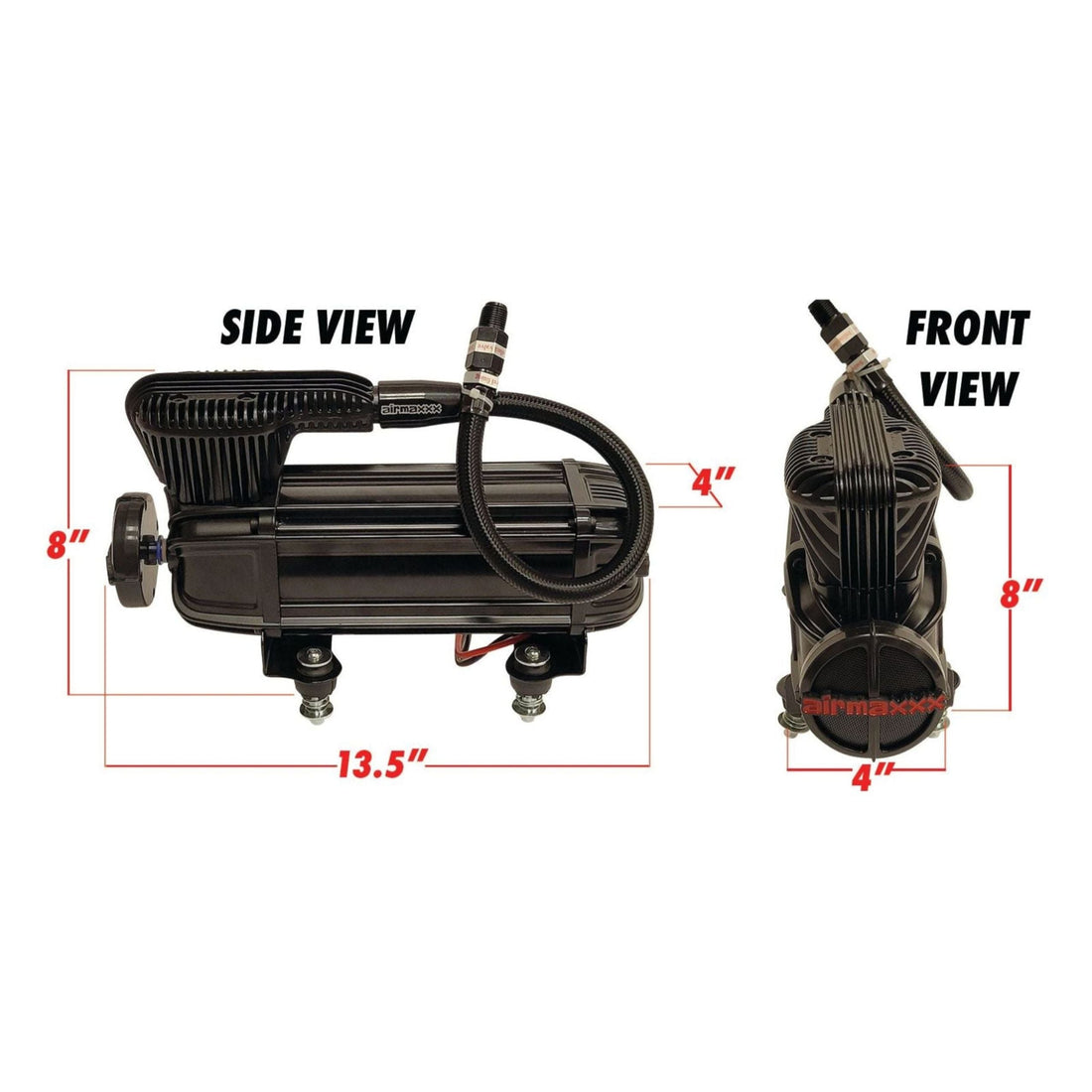

Dimensions: 13.5" L × 4" W × 8" H

Warranty: 1-year replacement warranty

Perfect For

Custom air ride suspension systems

Fast tank refill applications

Street trucks, lowriders, and show rides

Builders demanding quiet, reliable performance
