airmaxxx X-Series Air Compressor & 3 Gallon Tank Kit

Premium Onboard Air Made Simple

The airmaxxx X-Series Air Compressor with 3 Gallon Tank and Wiring Kit is a complete onboard air solution, built for power, reliability, and ease of installation. Delivering up to 200 PSI with a 100% duty cycle at 100 PSI, this system is perfect for air horns, air suspension, or auxiliary onboard air needs.

Featuring a high-output X-Series compressor paired with a versatile 6-port 3-gallon tank (choose steel or aluminum), this kit gives you everything you need — including a wiring install kit, pressure switch, and relay. Compact, efficient, and reliable, it’s designed to power your air system with confidence.

Key Features

High-Output X-Series Compressor – 1.75 CFM, 200 PSI max

100% Duty Cycle @ 100 PSI – Runs continuously at standard air pressures

3 Gallon 6-Port Tank – Choose steel or aluminum for flexible installation

Complete Air Kit – Includes wiring kit, leader hose, check valve, and fittings

Fast Fill Time – 0–145 PSI in ~2 minutes 29 seconds

Durable Build – Gloss black tank finish, stainless braided hose

Expandable System – Perfect base for suspension or horns

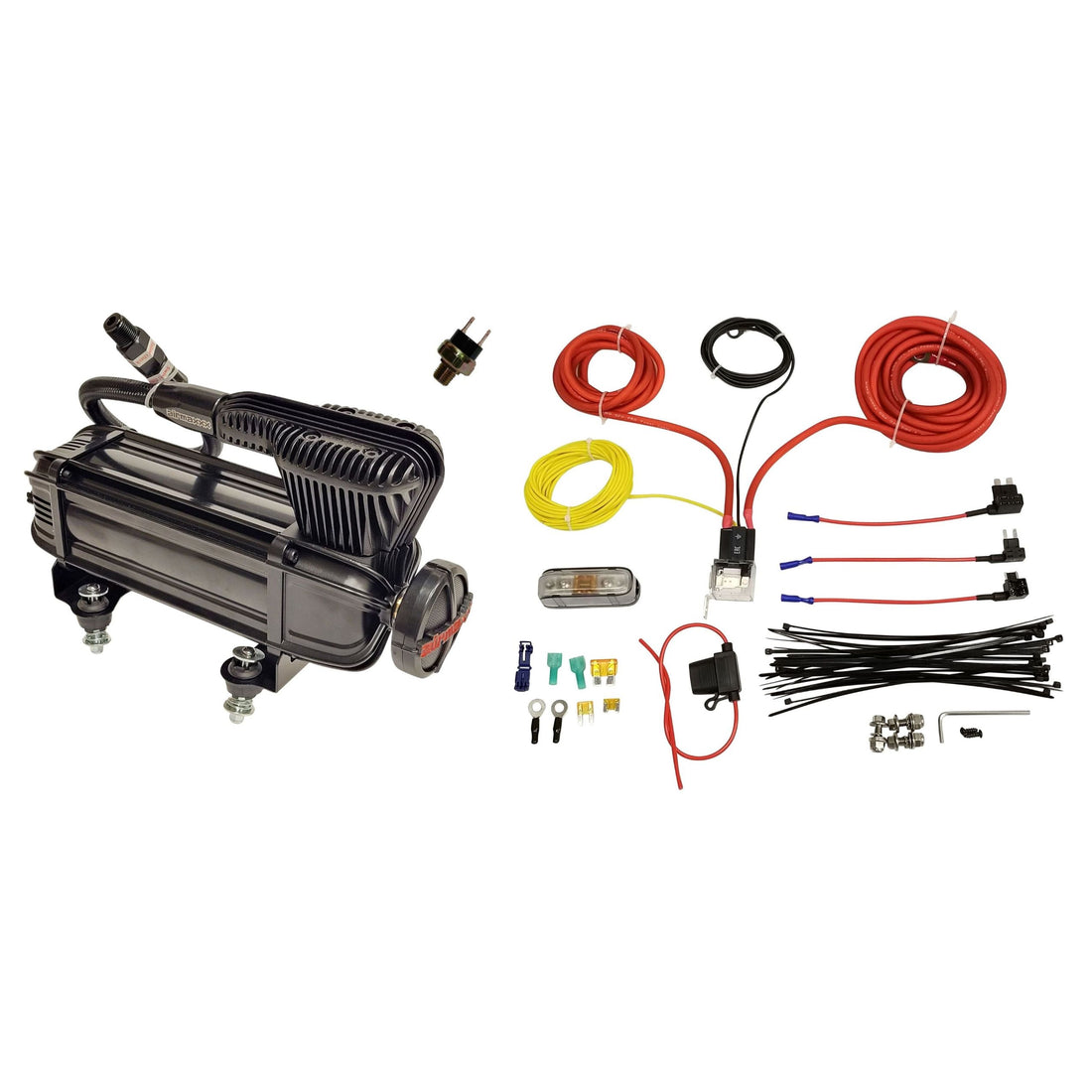

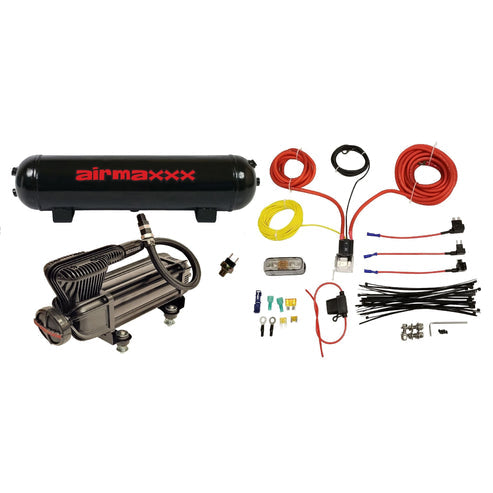

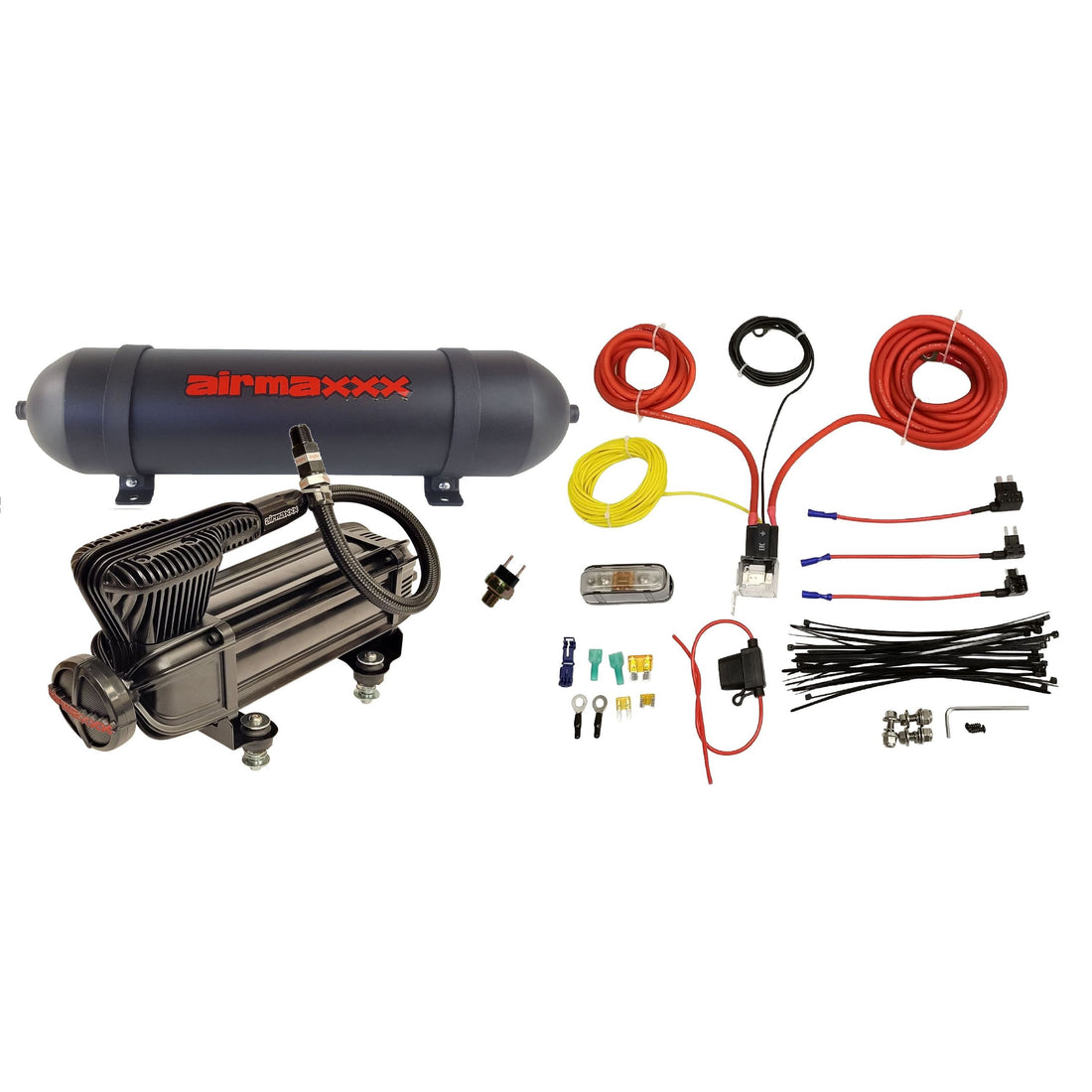

Kit Includes

(1) airmaxxx X-Series air compressor

(1) 3 gallon 6-port air tank
(steel or aluminum)

(1) 3/8" stainless braided leader hose

(1) 3/8"NPT check valve

(1) tank drain

(1) heavy duty pressure switch & 40 amp relay
(choose psi setting)

(1) single compressor wiring install kit

(Mounting brackets to mount X-Series compressor sold separately.)

Specs

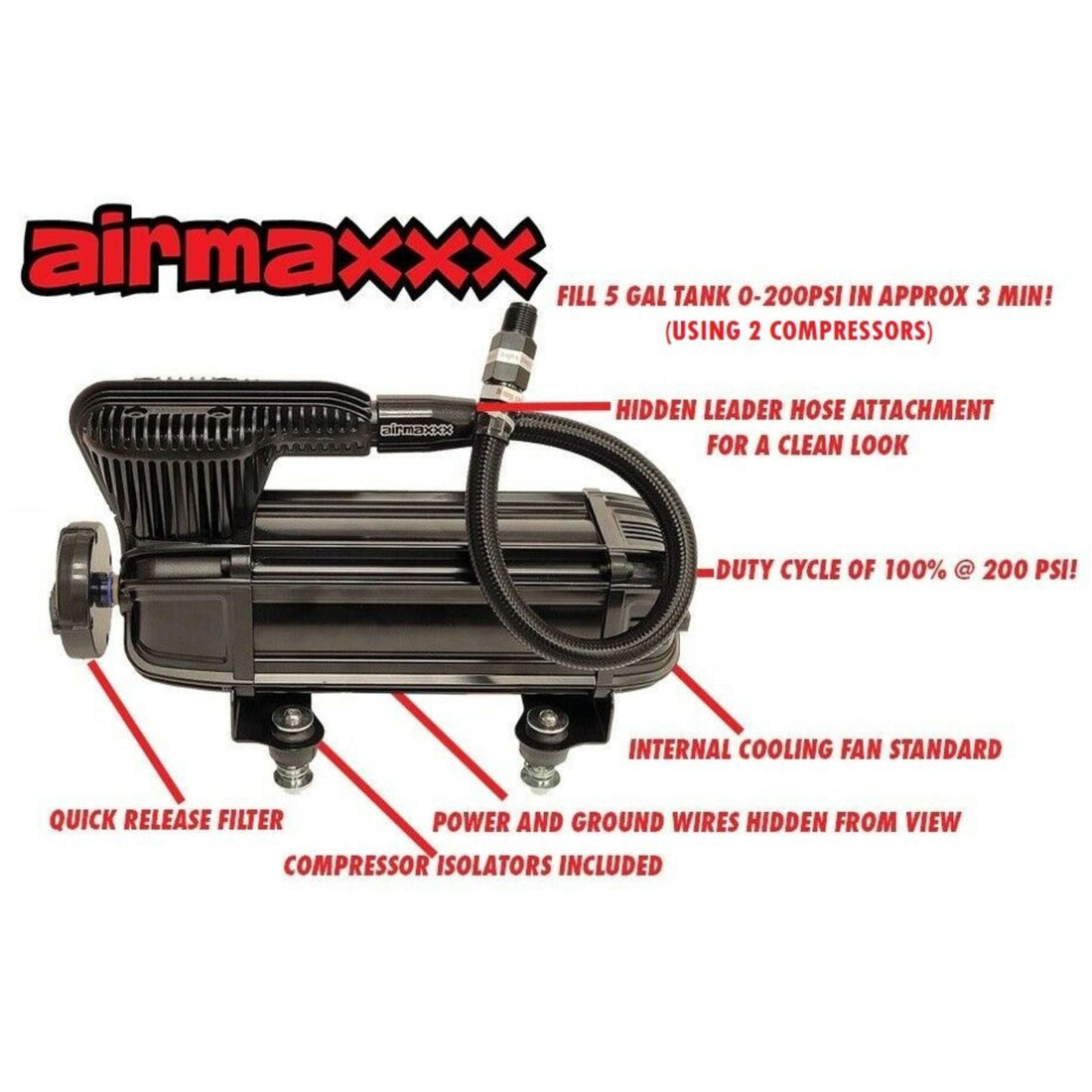

Compressor

12V, 1.75 CFM permanent magnetic motor

100% duty @ 100 PSI

Max pressure: 200 PSI

Max draw: 21 amps

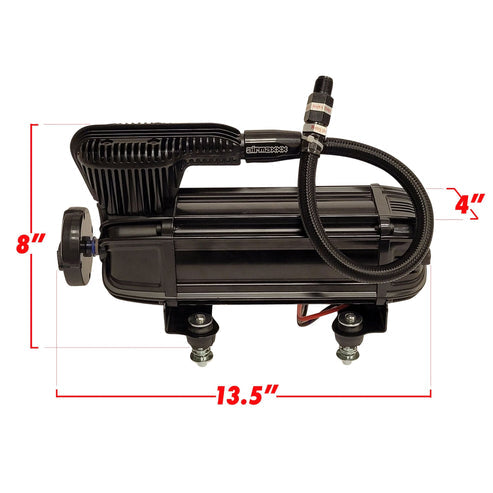

Size: 9.5" L x 7" H x 3.25" W

1-year warranty

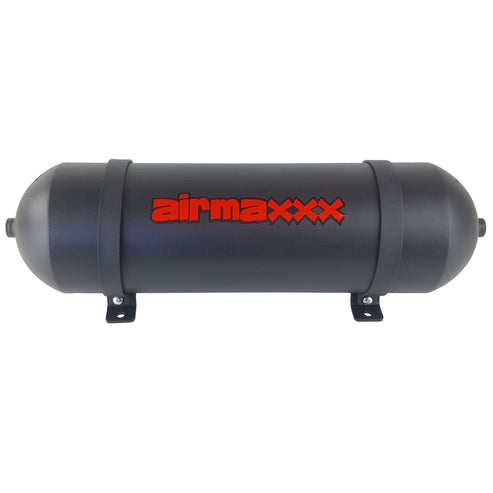

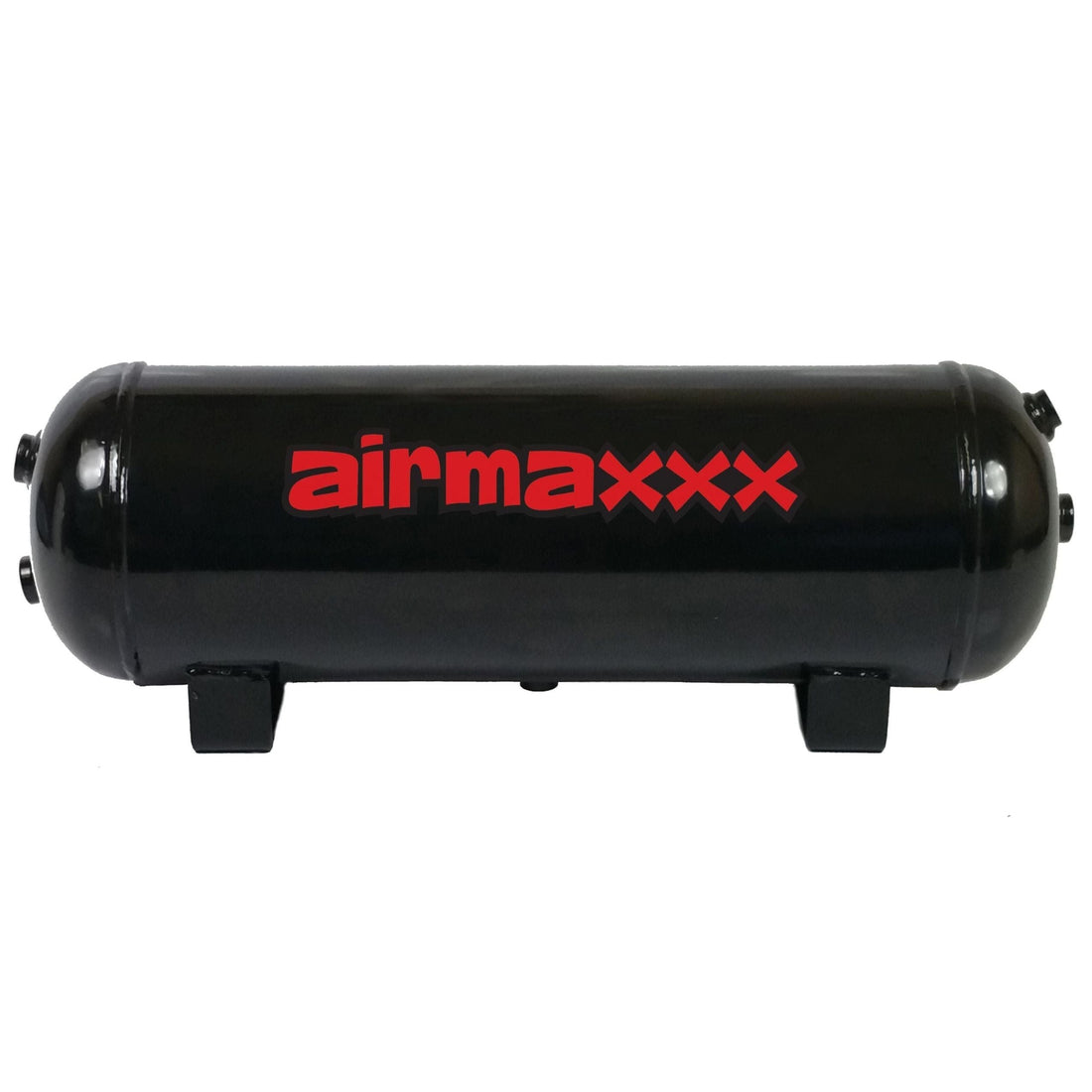

Tank

3 gallon capacity

6 ports
(3/8" & 1/4" NPT)

Size: 20" L x 7" W x 8.25" H

Max pressure: 200 PSI

Fill time (0–145 PSI): ~2 min 29 sec

Gloss black powder coat finish
