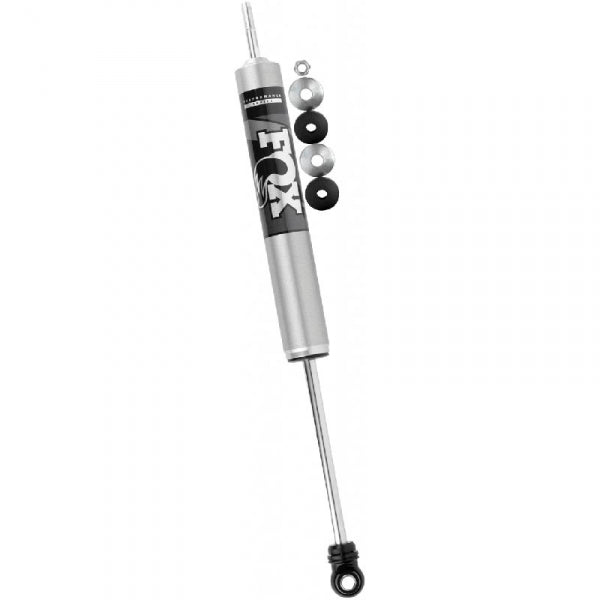

FOX 985-24-169 2.0 Performance Series IFP Shock Absorber

The FOX 985-24-169 2.0 Performance Series IFP Shock Absorber features the latest innovations in shock technology to the rear of your Ram 2500. FOX Shocks use race-proven damping control to provide a comfortable on-road
ride and predictable off-road handling in even the toughest conditions.

FOX 2.0 Shocks feature a precision metal impact aluminum body to increase cooling capacity and will never rust. Inside this FOX shock, you will find race-proven performance valving technology. An Internal Floating Piston
(IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race
developed high flow damping piston matched with application-specific valving of the FOX Performance Series 2.0 IFP shock provides upgraded damping while delivering a smooth and controlled ride on and off-road.

FEATURES:

. FOX Shocks 2.0 Performance Series
. Piston: Race-Developed High-Flow Piston Design
. Body Plating: Clear Anodized For A Durable Finish
. Shaft: 5/8" Hard Chrome Plated Heat-Treated Alloy Steel
. Valving: Application Specific Valving To Maximize Performance
. Mounting: Direct Replacement For Stock And Aftermarket Lift Kits
. Components: Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum
. Body: 2.0" Metal Impacted 6061-T6 Aluminum Will Resist Rust Over Time
. Bushings: Quiet Nitrile Rubber Allows For Increased Suspension Articulation
. Seals: Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal
. Oil: JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures
. Internal Reservoir: Internal IFP Mono-Tube Reservoir Design Separates Shock Oil From High-Pressure Nitrogen
. Sold Individually

SPECIFICATIONS:

. Extended Length: 24.98
. Compressed Length: 15.56
. Travel: 9.13

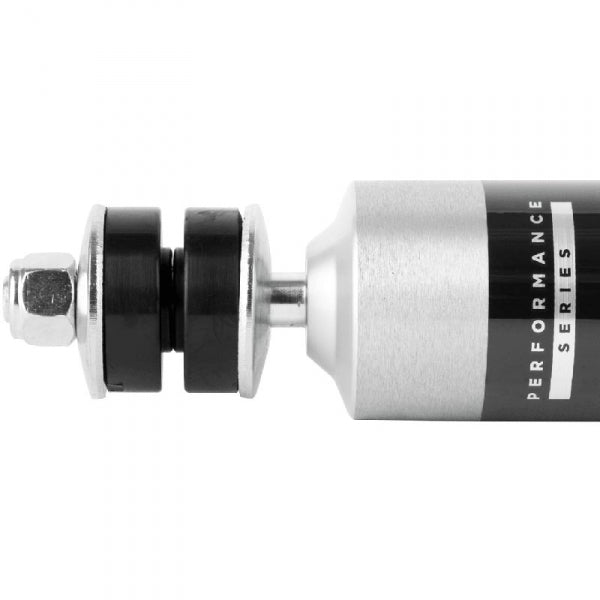

. Top Mount: Stem Top

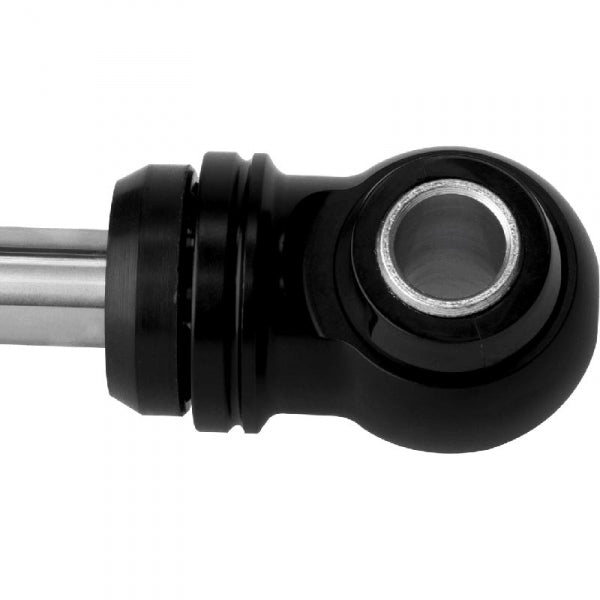

. Bottom Mount: Eyelet

Applications:
2014-2025 Ram 2500 4WD - Rear, Lifted 0-1.5"

Note
Lift height is suggested by Fox.
Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application.
Shock absorbers sold individually.

Manufacturer Warranty *:
Limited Lifetime
